BF94387's Designs Registery

Greetings!


This thread is a wiki for the manufacturers I’ve created, and is more of a “registry” than it is a design showcase.


Heres a link to my more “informal” design showcase thread that isn’t wiki-ed:

If you want to comment on my designs, thats the place to do it.

Manufacturers


DMU AG
Ziamena Automobili

6 Likes

DMU AG is a premium automotive manufacturer based in Duisburg, Germany. Founded by in 1949 and active to this day, DMU produces automobiles predominantly for the premium market.

The name DMU stands for Duisburg Motor Unternehmen [German], translating to “Duisburg Motor Company” [English].

Subsidiaries:

EXR

EXR


EXR are a boutique performance tuning branch of DMU founded in 1963. The acronym stands for Exklusive Rennarbeiten [German] translating to Exclusive Race works [English]. They mainly modify standard DMU models for performance, including engine tuning, boutique engine, suspension works, bodywork and aerodynamics.

They do a lot of custom work as well, completing many one off “special” orders. As said before, they primarily work on DMUs; however some customers have approached EXR with commissions, and their unofficial slogan speaks for itself: “Sie haben das Geld, Sie haben es getan” [you have the money, you have it done]. So if you have the funds, arrangements can be made…


(More cars will be added as I design them)

Vehicles (Chronological)
1952 D6

DMU D6


The first production vehicle to come from DMU, the D6 is a midsize premium sedan, mainly fitted with the I640H2 motor, a decently powerful inline 6.

The I640H2 follows the typical DMU engine naming scheme:

I6 = Engine type, (inline 6)
40 = 4 litre (cc /100)
H = Overhead cam
2 = 2 valve

Notable features found in all models in the D6 range include galvanised chassis, double-wishbone/semi-trailing suspension.

Variants:

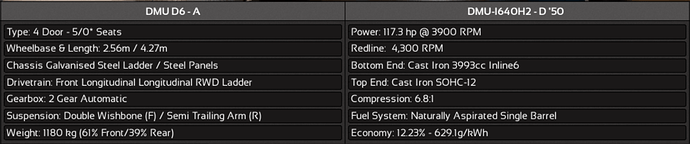

D6 A

Base model, with standard interior. Notable features are the auto two speed transmission.

Fitted with the I640H2-D, the base variant of the I640H2 series.

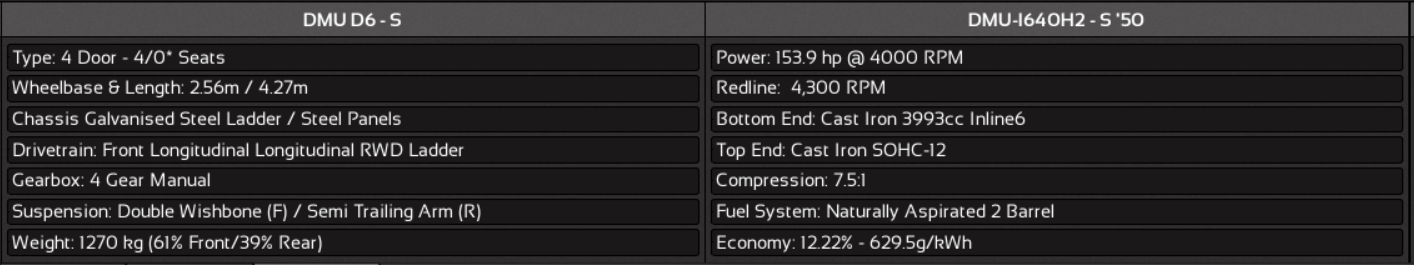

D6 S

Sportier and more premium variant, notably with the I640H2-S, premium interior and a much better four speed manual.

Capable of 195 Km/h and 0-100 in 10.5 seconds. How outrageously shporty!

DMU D6 D

The next year brought a wagon variant, much to the joy of the old grey-haired wagon enthusiasts (myself included, although I am neither of those two things)

This model is essentially a wagon version of the D6 A, you know, 2 speed auto and the good old I640H2-D.

D6 SD

Yes, it had to be done. A wagon variant of the D6-S. Nothing more needs to be said.

There will potentially be some more variants, although I might leave the ultra luxe demographic for another build.


1961 J6

J6

The J6 is the lower range premium sedan platform from DMU in 1961. It’s conceptually similar to the D6, having an identical chassis formula (Galvanised steel ladder frame) and a similar suspension setup (Double wishbone/Semi trailing arm.).

It’s also equipped with advanced safety in all variants.

It’s mainly fitted with the I630DA2 motor, a 3 litre inline 6 sporting direct acting overhead cams.

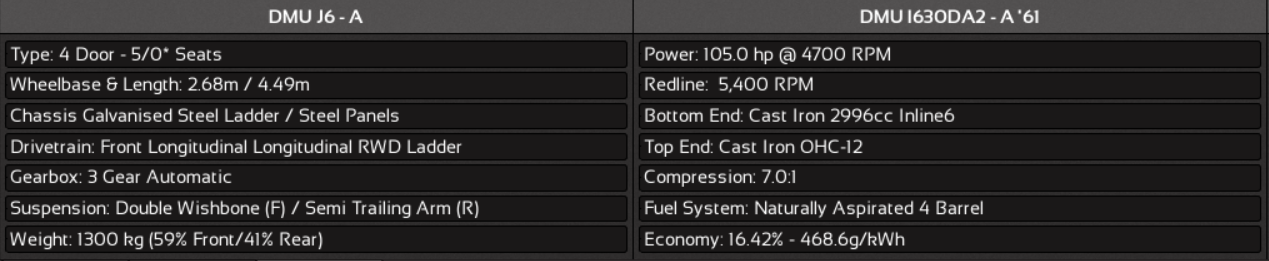

J6 A

The base model, although it still has a premium interior and radio.

Equipped with the base I630DA2-A, mated to a 3 speed auto. Not a powerhouse, but adequate for the base trim

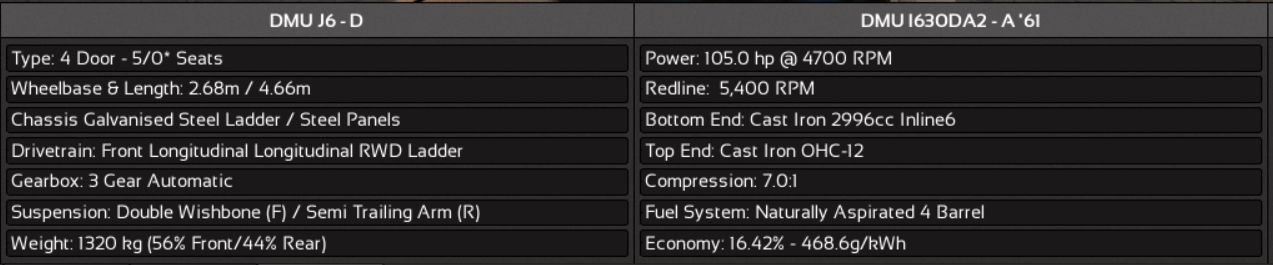

J6 D

Wagon variant of the J6 A, slightly different suspension setup; slightly higher ride height for better ground clearance.

Equipped with the same I630DA2-A found in the J6 A.

J6 S

The shport coupe variant, featuring a real gearbox (4 speed manual), 17 inch wheels, sports compound tires, sporty suspension tune and of course, the I630DA2-S, making 135hp!


Then EXR got their filthy hands on it:

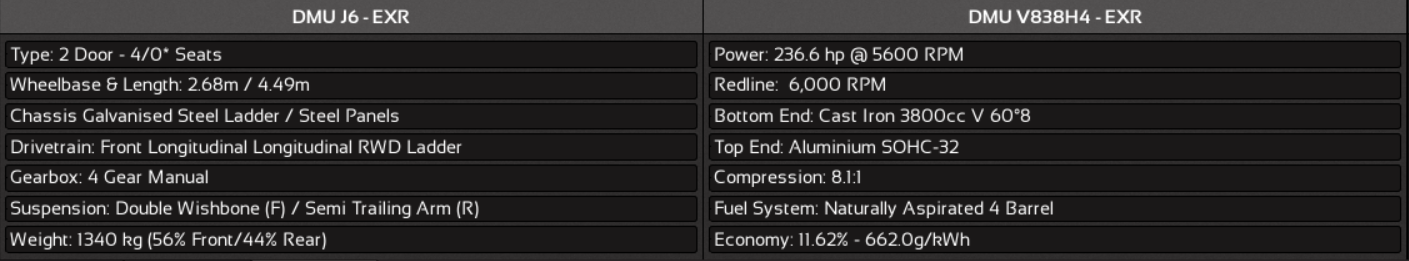

J6 EXR

This was one of EXR’s first projects, and they were ready to go all out. They scrapped the I630H2 from the original J6, and installed their crazy EXR built V838H4, a 3.8 litre v8 producing just less than double the horsepower of the I630H2-S. Other modifications include larger tires, aggressive suspension, magnesium wheels, custom bodywork/widebody and of course, the EXR engineers secret sauce: A lockable diff for maximum car-park fun.

1963 L6

L6 A

The 60s called, and they wanted a sports car. So DMU had to answer.

Here is the base model L6, fitted with a 2 litre inline 6 that makes 124 hp.

0-100 happens in 7.7 seconds, and the L6-A has a top speed of 183 km/h.

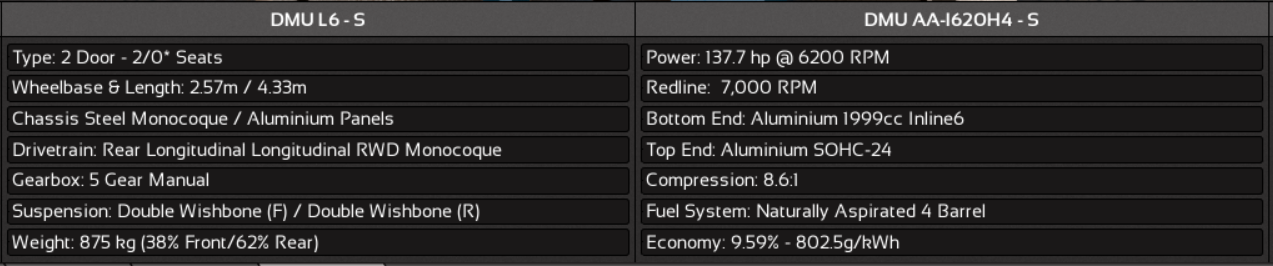

L6-S

Sport model, now with 137hp, higher redline, premium radio, bigger tires and other assorted upgrades.

0-100 now happens in 6.9 seconds

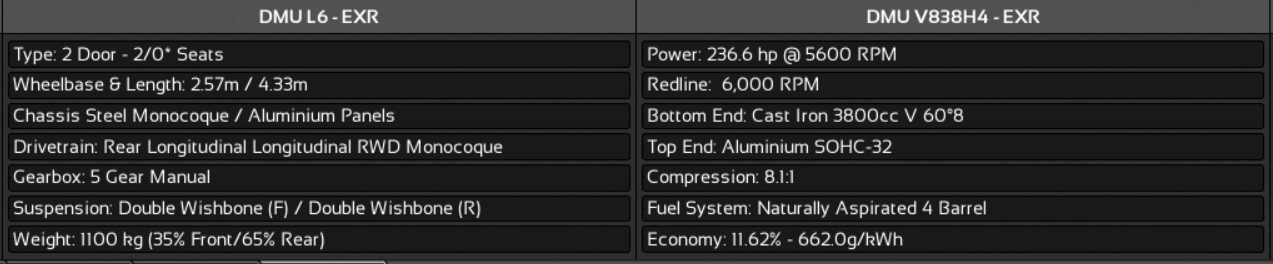

L6 EXR
The madmen at EXR got their hands on the L6, and dropped the V838H4-EXR motor (Orignally designed for the J6-EXR). While the big v8 is far heavier, it has almost double the power of the L6-A.

Other upgrades include EXR widebody, much wider tires, a handmade interior, custom body styling and more.
This turns the L6 into a supercar ahead of it’s time.

0-100 happens in 5.3 seconds, and tops out at 225 km/h.
(and it has a lockable diff… you know what that means :joy:)



1966 JX12

Details coming, but here’s the design:

JX12 XX

1982 LT5

Details coming soon, but here’s the design:

LT5 S

1987 KT8

Details coming, but here’s the design:

KT8 SX

1988 KT5

The KT5 is a premium midsize sedan/wagon featuring a turbo charged inline 5.
It can be compared to the BMW e30, Mercedes 190 E and the Audi 90.

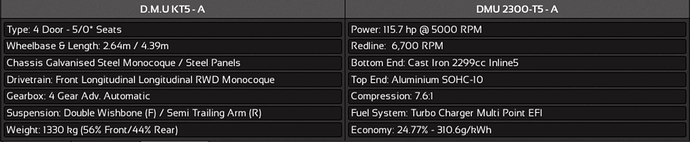

KT5 A

The base model. Mainly tuned for economy, although still has a premium touch.



KT5 S

The sport variant, with more than 50% power increase, sports suspension, sports tires and sports body styling.


KT5 SD

A wagon variant of the Schport model. Awesome.



KT5 EXR

DTM homoligation special. Now with 241hp and custom EXR bodywork/aero.

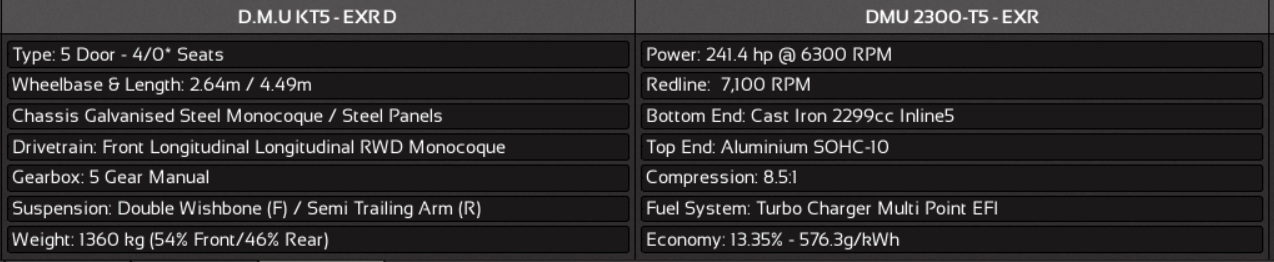

KT5 EXRD

Of course, it had to be done. In all of it’s glory:



2007 KT5

Details coming, but here’s the design:

KT5 S

2015 K24T

Details coming, but here’s the design:

K24T S

2 Likes

Ziamena Automobili is an Italian automaker based in Firenze, Italy. Founded by Mattia Ziamena in 1957 and active to this day, Ziamena specialises in producing sportscars and supercars.

Vehicles (Chrono)

Platforms produced:


1957 Tramena
Platform Production run: 1957-1965
Total Number produced: 5015

Tramena

The Tramena was Ziamena’s first project, the car that started the legendary legacy of Ziamena as we know it.

Its an aluminium paneled, double-double wishbone light sportscar platform that ran from 1957 to 1965, with multiple designs.

Trim levels:


1957 CL
Production run: 1957-1962
Number produced: 987

The first production model of the Tramena, equipped with a 2 litre flatplane V8 (Ziamena 250 v8, or Z250-8’57)

Equipped with a sports ratio four speed gearbox and "15 inch rims with sports compound radials.

The interior is fairly standard, and does not feature a radio.

Exterior styling by Bernardo Ferelli.



1959 CLS
Production run: 1959-1965
Number produced: 2349

A facelift of the convertible Tramena.

The Z250-8’59 has been tuned up to 133hp, and the car will now do the run to 100 in 8.3 seconds, as opposed to 8.6 in the last generation.

Other improvements include the new front disc brakes, premium leather interior featuring an ALPINO Pavarotti sound system.

Changes were also made to the front fascia by the stylist, Bernardo Ferelli.


1961 DLS
Production run: 1961-1965
Number produced: 1678

The DLS is a “fastback” trim of the Tramena, aimed at more of a gentleman-like customer.

It features a tune up to 143hp, significantly more grunt, but manages to sound far more refined with the dual reverse flow mufflers.

0-100 now happens in 8 seconds flat, and it’s now capable of a top speed of over 200km/h

In the comfort department, it features a full leather-bound interior, an ALPINO Paverotti Mastero sound system and all new progressive springs for soaking up the bumps.

The design is done by Bernarfo Ferelli.



Special Editions:


Numero 1
Production run: 1957
Number produced: 1

Chassis number 00001.

The motor was still in very early stages of development, and the car lacks any safety features at all.
All fixtures are painted for testing purposes.



1965 Trangula

Trangula


Production: 1965-1970
Produced: 9,818

The Trangula is a light 60s FR sportscar equipped with a small Flatplane V8
The body is constructed of very light weight Aluminum over a steel monocoque and is equipped with sports double wishbone suspension.

The Trangula competed with the likes of the Angelerini Pegusus and the Franklin Cerberus in the Frunian Sportscar market


Trim Levels


275 LS

Trangula 275 LS


Production: 1965-1969
Produced: 4301

1965 saw the release of the first Trangula, the 275 LS.

275 refers to the displacement of each cylinder, which leads through a total displacement of 2200cc
LS stands for Light sport (or sport leggero in italian)

The 275 LS makes it’s power from the first generation Ziamena 275 flatplane v8, making 135 hp and 184 NM of torque. It’s fitted to a 4 speed manual transmission, with a fairly neutral ratio.

Important to note that because this is the base model, it came from the factory with a soft top instead of the later hard top.



313 LS

Trangula 313 LS


Production: 1967-1970
Produced: 5460

Released in 1967, the 313 LS brought some nice improvements to the previous model.

The name ‘313’ refers to the displacement per cylinder, which adds up to a total of ~2500cc. The 313 V8 produces a power output of 143hp, launching the Trangula to 100km/h in just over 8 seconds.

This version of the Trangula has a sports interior, equipped with a Racero sports seats and a MAMA leather bound steering wheel from the factory.

Other notable features are the 17" magnesium wheels mated to some improved two piston brakes up front for improved stopping power.



Special editions:


313 Ghepardo
Production: 1967
Produced: 7

A Trangula 313 coachbuilt by BF9 Autohaus.

Features the 313 V8 that has been tuned to 169hp, and is mated to a 5 speed manual transmission.

Only 7 were ever made, and only 6 survive.

350 GTO
Production: 1969
Produced: 50

A race ready version of the Trangula. Stripped, tuned and ready for the track.

Fitted with a race tuned Ziamena 350 (2800cc) flatplane V8, making over 250hp.

Rich with race history, and merely 50 were made. We can only verify the location of 35 of the original cars, although there has been unconfirmed sightings of unknown vins in south america.
