1.9L I4 SOHC Engine for Vortex 1.9

Sharing Engine Sharing Forum
1

Hello, and this is an engine for my future family hatchback, which is probably going to be called the Denevo(My possible company name) Vortex 1.9. It is designed to be an economical, cheap engine, so that’s why it doesn’t run @ 480HP:lol: (That’s all I’ve got to say :laughing:)
Pic at the end :smiley:

Specs:
117 HP @ 6900 RPM
1.9L Inline 4 SOHC 8V EFI
117 ft-lb @ 3900 RPM
Redline: 8100 RPM

Now for the build-specs, so you can rip off my engine :slight_smile: :

Block material: AlSi
Bore: 89mm
Stroke: 74.5mm
Crank: Forged Steel
Conrods: i-Beam-Steel
Piston: Forged
Head & Valves:Single OverHead Cam, 2 Valve
Head material: Cast Iron
Compression: 10.5:1
Cam profile: 50
VVT: nope
VVL: nope
Aspiration: NA
Fuel System: Injection, Multi-Point EFI, Single intake, Standard Intake
Fuel Setup: Premium Unleaded, 12.9:1
Ignition timing: 40
RPM Limit: YOU ALREADY KNOW THIS, but it’s 8100 :laughing:
Exhaust: Tubular, No valve, High-Flow 3-Way, Reverse flow, Reverse flow
There you go! :smiley:

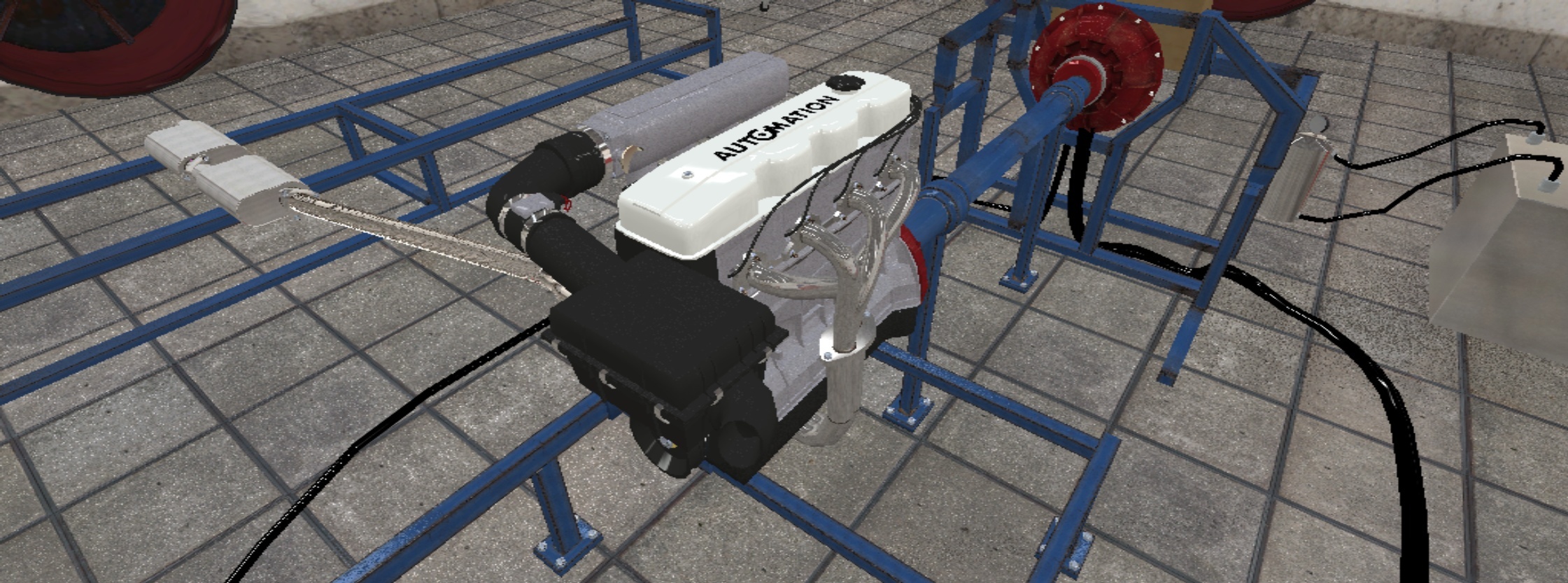

Denevo Vortex 1.9-4.jpg2241×833 666 KB

2

i felt little boring drive my family car so i pull it apart in my garage

2.0L Inline 4 DOHC 16V DFI
480 HP @ 7100 RPM
512 Nm(377.6 ft-lb) @ 5300 RPM
Redline: 8000 RPM

Block material: AlSi
Bore: 92.4mm
Stroke: 74.5mm
Crank: Forged Steel
Conrods: i-Beam-Steel
Piston: Lightweight Forged
Head & Valves: Dual OverHead Cam, 4 Valve
Head material: Cast Iron
Compression: 9.0:1
Cam profile: 73
VVT: nope
VVL: nope
Aspiration: Turbo, Large Intercooler, Compressor 61.5mm, Turbine 57.0mm, A/R Ratio 1.00, Boost 1.8bar
Fuel System: Injection, Direct Injection, Single intake, Performance Intake
Fuel Setup: Super Unleaded, 11.0:1
Ignition timing: 83

Exhaust: Short Cast, Exhaust Diameter 3.5", No valve, High-Flow 3-Way, Straight Through, Straight Through

3

AND… this is my engine I did earlier! :smiley:

Capture Hothatch.PNG1353×753 1.23 MB

4

[quote=“pleo”]i felt little boring drive my family car so i pull it apart in my garage

2.0L Inline 4 DOHC 16V DFI
480 HP @ 7100 RPM
512 Nm(377.6 ft-lb) @ 5300 RPM
Redline: 8000 RPM

Block material: AlSi
Bore: 92.4mm
Stroke: 74.5mm
Crank: Forged Steel
Conrods: i-Beam-Steel
Piston: Lightweight Forged
Head & Valves: Dual OverHead Cam, 4 Valve
Head material: Cast Iron
Compression: 9.0:1
Cam profile: 73
VVT: nope
VVL: nope
Aspiration: Turbo, Large Intercooler, Compressor 61.5mm, Turbine 57.0mm, A/R Ratio 1.00, Boost 1.8bar
Fuel System: Injection, Direct Injection, Single intake, Performance Intake
Fuel Setup: Super Unleaded, 11.0:1
Ignition timing: 83

Exhaust: Short Cast, Exhaust Diameter 3.5", No valve, High-Flow 3-Way, Straight Through, Straight Through[/quote]

Lol yours sound one heck of a lot better than mine xD I clearly suck LOL

5

Not really a family hatchback but a rally car :laughing:

6

lol Ikr
