FAAL - The Engines™

abg7 · 2 May 2018 10:52

That’s quite an impressive list of cheap, easy-to-build engines you’ve got there - unpretentious, not too complex and just enough power for the cars in which they are installed. But the engine for your upcoming Group B homologation special is unlikely to be any of those things…

Knightophonix · 2 May 2018 11:04

Looks at my incoming Group B homologation special
…
y-yeah… no frills… and easy to build… yeah! Exactly! hehe! heh…

Knightophonix · 2 July 2018 15:16

255R21

Production years: 1983 through ???
Shared specs:

SOHC 4V Inline 5, cast iron block, aluminium head
Bore: 85mm
Stroke: 75.5mm
Displacement: 2141cc

Cars used in:

1978-19?? Coupe
1982-1992 Mk4 Foreia
1982-19?? Mk2 Klinos
1988-1999 Mk2 Ochlosia
1990-19?? Mk3 Klinos
1992-19?? Mk5 Foreia

Mpi (1983-1992)

Specs:

Internals: Cast crank, Cast rods, Hypereutectic cast pistons
Compression ratio: 8.4:1
Naturally aspirated
Multipoint EFI
6500rpm redline
Unleaded 91
Short cast exhaust header
Two reverse flow mufflers

Used in:

1983-1992 Foreia mk4 2.1 GLi / GLi Tetra
1983-1985 Coupe 2.1CS

MpiTE (1983-1993)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 8.0:1
Single ball bearing turbo @0.72bar
Multipoint EFI
6800rpm redline
Unleaded 91
Short cast exhaust header
One straight through, one reverse flow mufflers

Used in:

1983-19?? Klinos Excellence
1983-19?? Coupe 2.1 Turbo
1988-1993 Ochlosia 2.1 Turbo

MpiT (1983-1988)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.0:1
Single ball bearing turbo @1.05bar
Multipoint EFI with ITBs
7100rpm redline
Unleaded 95
Short cast exhaust header
One straight through, one reverse flow muffler

Used in:

1983-1988 Coupe TETRA Evo III

MpiT2 (1983-1984)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.0:1
Single ball bearing turbo @1.34bar
Multipoint EFI with ITBs
7300rpm redline
Unleaded 95
Short cast exhaust header
One reverse flow muffler

Used in:

1983-1984 Coupe TETRA “Tour De Corse” 'Group B homologation special)

MpiTR (F1) (1984-1988)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.4:1
Single ball bearing turbo @2.11bar (no wastegate)
Multipoint EFI with ITBs
7800rpm redline
Unleaded 95
Short cast exhaust header
No mufflers

Used in:

1984-1985 Coupe Tetra Group B rallye car (ver. 1)
1988 Foreia Trans-Am race car

MpiTR (F2) (1985-1986)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.8:1
Single ball bearing turbo @2.6bar
Multipoint EFI with ITBs
9100rpm redline
Unleaded 98
Short cast exhaust header
No mufflers

Used in:

1985-1986 Coupe Tetra Evo 4

disregard the ET/PU, how was I supposed to get more HP outta this :'(

MpiT3 (1988-1988)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.0:1
Single ball bearing turbo @1.05bar
Multipoint EFI with ITBs and VVT
7200rpm redline
Unleaded 95
Short cast exhaust header
One reverse flow muffler

Used in:

1988 FAAL Tetra Evo 4

Mpi Euro 1 (1991-19??)

Specs:

Internals: cast crank, cast rods, low friction cast pistons
Compression ratio: 8.6:1
Naturally aspirated
Multipoint EFI with VVT
6900rpm redline
Unleaded 91
Short cast exhaust header
Catalytic converter and two reverse flow mufflers
Used in:
1991-19?? Mk3 Klinos 2.1 GL
1992-19?? Mk5 Foreia 2.1 GL

MpiT Euro 1 (1990-19??)

Specs:

Internals: cast crank, cast rods, forged pistons
Compression ratio: 7.5:1
Single ball bearing turbo @ 0.767 bar
Multipoint EFI with VVT
6800rpm redline
Unleaded 91
Short cast exhaust header
Catalytic converter and one straight through, one reverse flow muffler
Used in:
1991-19?? Mk3 Klinos GLS Turbo
1992-19?? Mk5 Foreia Coupe Turbo

Knightophonix · 5 August 2018 22:32

255R25

Production years: 1982 through ???
Shared specs:

SOHC 4V Inline 5, cast iron block, aluminium head
Bore: 85.2mm
Stroke: 87.6mm
Displacement: 2497cc

Cars used in:

1978-1988 Coupe
1982-1992 Mk4 Foreia
1982-1990 Mk2 Klinos
1988-1999 Mk2 Ochlosia
1990-19?? Mk3 Klinos

Mpi (1982-19??)

Specs:

Internals: Cast crank, Cast rods, Hypereutectic cast pistons
Compression ratio: 8.4:1
Naturally aspirated
Multipoint EFI
6200rpm redline
Unleaded 91
Short cast exhaust header
Two reverse flow mufflers

Used in:

1982-1992 Foreia IV 2.5 GLi

1982-1992 Klinos II 2.5 GLSi

1988-1992 Ochlosia II 2.5 GLi

Mpi2 (1982-19??)

Specs:

Internals: Cast crank, Lightweight forged rods, Forged pistons
Compression ratio: 8.7:1
Naturally aspirated
Multipoint EFI
6900rpm redline
Unleaded 91
Tubular exhaust header
One straight through, one reverse flow mufflers

Used in:

1983-1992 Coupe 20V

Mpi Euro 1 (1990-19??)

Specs:

Internals: Cast crank, Lightweight forged rods, Forged pistons
Compression ratio: 8.8:1
Naturally aspirated
Multipoint EFI
6900rpm redline
Unleaded 91
Cast log exhaust header
Catalytic converter, two reverse flow mufflers

Used in:

1990-19?? Mk3 Klinos 2.5 GL
1992-19?? Mk5 Foreia 2.5 GLS

MpiS Euro 1 (1992-19??)

Specs:

Internals: Cast crank, Lightweight forged rods, Forged pistons
Compression ratio: 9.5:1
Naturally aspirated
Multipoint EFI
7200rpm redline
Unleaded 91
Tubular exhaust header
Catalytic converter, one straight through, one reverse flow muffler

Used in:

1992-19?? Mk5 Foreia Coupe 20V

Knightophonix · 5 August 2018 22:55

204R16

Production years: 1982 through ???
Shared specs:

SOHC 4V Inline , cast iron block, cast iron head
Bore: 84.8mm
Stroke: 70.8mm
Displacement: 1599cc

Cars used in:

1975-1991 Mesaia III
1991-2003 Mesaia IV

Mpi (1982-1991)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 9.3:1
Naturally aspirated
Multipoint EFI
6900rpm redline
Unleaded 91
Tubular exhaust header
One straight through, one reverse flow mufflers

Used in:

1982-1991 Mesaia III 1.6 GTI2

Mpi Euro 1 (1991-1996)

Specs:

Internals: Cast crank, Cast rods, low friction cast pistons
Compression ratio: 8.5:1
Naturally aspirated
Multipoint EFI
6800rpm redline
Unleaded 91
Short cast exhaust header
Catalytic converter, two reverse flow mufflers

Used in:

1991-1996 Mk4 Mesaia 1.6

Knightophonix · 5 August 2018 22:58

204R18

Production years: 1985 through ???
Shared specs:

SOHC 4V Inline 4, cast iron block, cast iron head
Bore: 87.4mm
Stroke: 74.9mm
Displacement: 1799cc

Cars used in:

1975-1991 Mesaia III
1978-1988 Coupe

Mpi (1985-1988)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 9.4:1
Naturally aspirated
Multipoint EFI
6900rpm redline
Unleaded 91
Tubular exhaust header
One straight through, one reverse flow mufflers

Used in:

1985-1991 Mesaia III 1.8 GTI
1985-1988 Coupe 16V

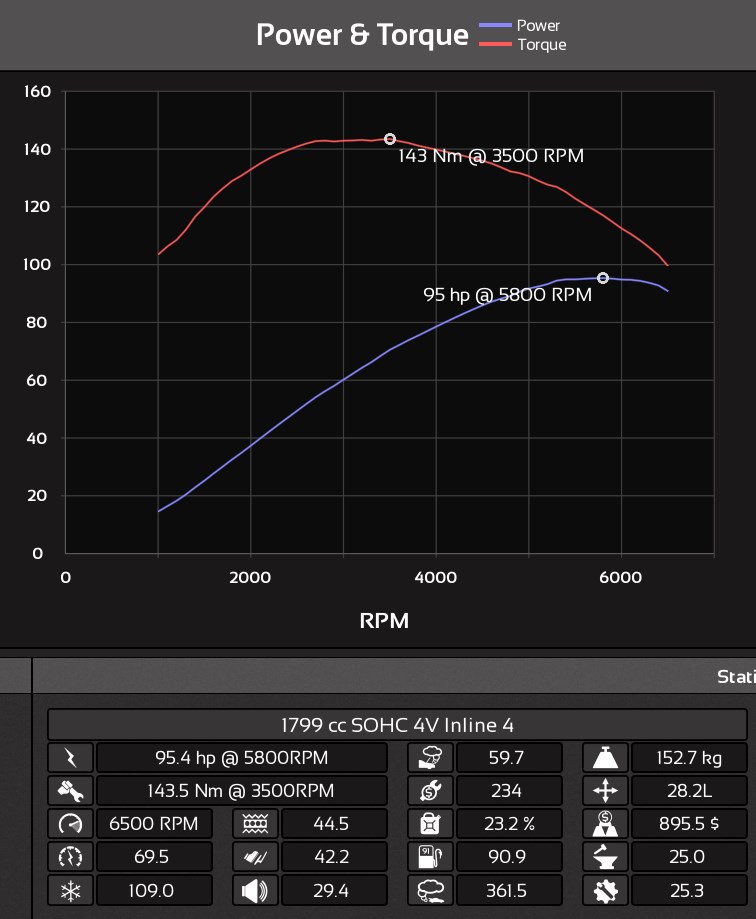

Mpi Euro 1 (1991-1997)

Specs:

Internals: Cast crank, Cast rods, Low friction cast pistons
Compression ratio: 8.5:1
Naturally aspirated
Multipoint EFI
6500rpm redline
Unleaded 91
Short cast exhaust header
Catalytic converter, two reverse flow mufflers

Used in:

1991-1996 Mesaia IV 1.8
1992-1997 Foreia V 1.8

Knightophonix · 5 August 2018 23:18

204R20

Production years: 1982 through 2002
Shared specs:

SOHC 4V Inline 4, cast iron block, cast iron head
Bore: 87.4mm
Stroke: 83.2mm
Displacement: 1997cc

Cars used in:

1982-1992 Foreia IV
1988-1999 Ochlosia II
1991-2002 Mesaia IV
1992-2001 Foreia V

Mpi (1986-1991)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 8.5:1
Naturally aspirated
Multipoint EFI
6500rpm redline
Unleaded 91
Short cast exhaust header
Two reverse flow mufflers

Used in:

1982-1992 Foreia IV 2.0 GLi
1986-1992 Ochlosia II 2.0i

MpiS Euro 1 (1991-1996)

Specs:

Internals: Cast crank, lightweight forged rods, Forged pistons
Compression ratio: 10.5:1
Naturally aspirated + VVT
Multipoint EFI
7200rpm redline
Unleaded 95
Tubular exhaust header
Catalytic converter, One straight through, One reverse flow muffler

Used in:

1991-1996 Mesaia IV GTI

Knightophonix · 4 September 2018 13:33

133S9

Production years: 1985 through ???
Shared specs:

Direct Acting SOHC Inline 3, cast iron block, cast iron head
Bore: 72.9mm
Stroke: 71.5mm
Displacement: 895cc

Cars used in:

1985-??? Dima

Spi (1985-19??)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 7.5:1
Naturally aspirated
Throttle body EFI
6500rpm redline
Unleaded 91
Short cast exhaust header
Two reverse flow mufflers

Used in:

1985-??? Dima 900

Knightophonix · 4 September 2018 14:57

133R13

Production years: 1985 through ???
Shared specs:

SOHC 4V Inline 3, cast iron block, cast iron head
Bore: 81.0mm
Stroke: 84.1mm
Displacement: 1300cc

Cars used in:

1985-??? Dima

MpiS (1985-19??)

Specs:

Internals: Cast crank, Lightweight forged rods, Forged pistons
Compression ratio: 9.2:1
Naturally aspirated
Multipoint EFI
6800rpm redline
Unleaded 91
Tubular exhaust header
One straight through, One reverse flow mufflers

Used in:

1985-??? Dima 1.3S

Mpi Euro 1-2 (1993-19??)

Specs:

Internals: Cast crank, cast rods, low friction cast pistons
Compression ratio: 8.6:1
Naturally aspirated
Multipoint EFI
6300rpm redline
Unleaded 91
Short cast header
Catalytic converter, two reverse flow mufflers

Used in:

1993-19?? Mk1 Tasia 1.3L

Knightophonix · 4 September 2018 15:07

133R12

Production years: 1985 through ???
Shared specs:

SOHC 4V Inline 3, cast iron block, cast iron head
Bore: 81.0mm
Stroke: 76.1mm
Displacement: 1176cc

Cars used in:

1985-??? Dima

MpiT (1985-19??)

Specs:

Internals: Forged crank, Heavy duty forged rods, Forged pistons
Compression ratio: 8.0:1
Naturally aspirated
Multipoint EFI
6800rpm redline
Unleaded 91
Short cast exhaust header
One straight through, One reverse flow mufflers

Used in:

1985-??? Dima Turbo

Knightophonix · 20 September 2018 13:22

194P19

Production years: 1964 through 2003
Shared specs:

Pushrod inline 4, cast iron block, cast iron head
Bore: 77.2mm
Stroke: 101.6mm
Displacement: 1902cc

Cars used in:

1955-1965 Mesaia
1965-1975 Mesaia II
1991-2003 Mesaia IV
1960-1974 Foreia II
1974-1982 Foreia III
1982-1992 Foreia IV
1992-2002 Foreia V
1976-1988 Ochlosia
1988-19?? Ochlosia II

D (1964-1972)

Specs:

Internals: cast unobtainium
Fuel feeding: Indirect injection
Fuel type: Hopes and dreams

Used in:

1964-1965 Mesaia I 19D
1965-1972 Mesaia II 19D
1965-1972 Foreia II 19D

D2 (1972-1982)

Specs:

Internals: forged kryptonite
Fuel feeding: Indirect injection
Fuel type: Unicorn piss

Used in:

1972-74 Foreia II 19D
1974-1982 Foreia III BLD / GLD

D3 (1982-1997)

Specs:

Internals: cast steel from WW2 planes
Fuel feeding: Indirect injection
Fuel type: Virgin blood

Used in:

1982-1991 Mk3 Foreia BLD
1991-1996 Mk4 Mesaia 1.9D

TD (1982-1987)

Specs:

Internals: CNC’d star dust
Fuel feeding: Indirect injection
Fuel type: Jägermeister

Used in:

1982-1987 Foreia III BLDt - GLDt
1982-1987 Ochlosia TD

TD2 (1987-1991)

Specs:

Internals: Bull bones fitted together with their own ligaments
Fuel feeding: Indirect injection
Fuel type: The contents of that one solo cup you down right before passing out and needing your stomach emptied at school parties

Used in:

1987-1991 Foreia III BLDt - GLDt
1987-1991 Ochlosia II BLDt

TD3 (1991-1996)

Specs:

Internals: Bull bones fitted together with their own ligaments
Fuel feeding: Indirect injection
Fuel type: The contents of that one solo cup you down right before passing out and needing your stomach emptied at school parties

Used in:

1991-1996 Mk4 Mesaia TD
1991-1996 Mk2 Ochlosia 1.9 TD
1992-1996 Mk5 Foreia 1.9 TD

Knightophonix · 20 September 2018 18:26

194P15

Production years: 1972 through 1991
Shared specs:

Pushrod inline 4, cast iron block, cast iron head
Bore: 69.5mm
Stroke: 101.6mm
Displacement: 1541cc

Cars used in:

1965-1975 Mesaia II
1975-19?? Mesaia III

D (1972-1982)

Specs:

Internals: Nokia 3210s glued together with flextape
Fuel feeding: Indirect injection
Fuel type: Peanut butter. The crunchy type.

Used in:

1972 - 1975 Mesaia II 15D
1975-1982 Mesaia III BLD/CLD/GLD

D2 (1982-1991)

Specs:

Internals: Unmelted steel beams from the Twin Towers
Fuel feeding: Indirect injection
Fuel type: Jet Fuel

Used in:

1972 - 1975 Mesaia II 15D
1975-1982 Mesaia III BLD/CLD/GLD

TD (1982-1991)

Specs:

Internals: They are actually one of the numerous byproducts of thneed.
Fuel feeding: Indirect injection
Fuel type: Just pee in the tank fam

Used in:

1982 - 19?? Mesaia III GLDt / GTD

Knightophonix · 20 September 2018 18:52

255P25

Production years: 1970 through 1991
Shared specs:

Pushrod inline 5, cast iron block, cast iron head
Bore: 77.9mm
Stroke: 103.8mm
Displacement: 2475cc

Cars used in:

1960-1974 Foreia II
1974-1982 Klinos
1982-1990 Klinos II
1976-1988 Ochlosia
1988-19?? Ochlosia II

D (1970-1976)

Specs:

Internals: Yes.
Fuel feeding: Indirect injection
Fuel type: Parisian tears

Used in:

1970-1974 Foreia II 25DL
1974-1976 Klinos GLSD

D2 (1976-1988)

Specs:

Internals: None. The engine actually builds them on the fly as started, using ambiant air brought to solidification temperature.
Fuel feeding: Indirect injection
Fuel type: You don’t ask that to an old lady.

Used in:

1976-1982 Klinos GLSD
1982-1988 Klinos II GLSD
1976-1988 Ochlosia 2.5D

TD (1978-1982)

Specs:

Internals: John McCain
Fuel feeding: Indirect injection
Fuel type: Sarah Palin

Used in:

1978-1982 Klinos GLSDt

TD2 (1982-1991)

Specs:

Internals:
Fuel feeding: Indirect injection
Fuel type:

Used in:

1982-1990 Klinos GLSDt / Excellence TD
1988-1990 Ochlosia II 2.5 TD

TD3 (1990-19??)

Specs:

Internals: Organs
Fuel feeding: Indirect injection
Fuel type: Lewd juices

Used in:

1990-19?? Mk3 Klinos GLS Turbo D
1990-19?? Ochlosia II 2.5 TD

Knightophonix · 26 October 2018 23:15

408R40

Production years: 1990 through ???
Shared specs:

SOHC 4V 90° V8, cast iron block, cast iron head
Bore: 87.4mm
Stroke: 73.2mm
Displacement: 3993cc

Cars used in:

1990-19?? Mk3 Klinos

Mpi Euro 1 (1990-19??)

Specs:

Internals: Cast crank, Cast rods, Forged pistons
Compression ratio: 9.9:1
Naturally aspirated
Multipoint EFI with VVT
6700rpm redline
Unleaded 95
Tubular exhaust header
Catalytic converter, Two reverse flow mufflers

Used in:

1990-19?? Mk3 Klinos Excellence V8 S-tronic

Knightophonix · 11 January 2019 23:52

133R11

Production years: 1993 through ???
Shared specs:

SOHC 4V Inline 3, cast iron block, cast iron head
Bore:81mm
Stroke: 71.5mm
Displacement: 1105cc

Cars used in:

1993-19?? Mk1 Tasia

Mpi Euro 1 (1993-19??)

Specs:

Internals: Cast crank, Cast rods, low friction cast pistons
Compression ratio: 8.6:1
Naturally aspirated
Multipoint EFI
6500rpm redline
Unleaded 91
Short cast exhaust header
Catalytic converter, Two reverse flow mufflers

Used in:

1993-19?? Mk1 Tasia 1.1L

On3CherryShake · 12 January 2019 00:40

My favorite engine!

Watermelon3878 · 12 January 2019 01:52

You just do not give a shit at this point, do you?

Knightophonix · 12 January 2019 01:55

The only reason diesels exists are for Beam exports and lore numbers, all they need to do is have accurate power curves and figures for the displacement and time period, literally all the rest is bullshit xD

Like in game, most of my turbo engines have like 50% stress on those poor low friction pistons
